How PCB panelization and volume affect your assembly costs is critical for reducing manufacturing expenses and boosting efficiency. Whether you’re a hardware startup or sourcing manager, understanding how panelization, order volume, and production strategies lower PCB assembly costs helps you maximize yield while minimizing waste. In this guide, we’ll explore how smart panel design, volume planning, and process alignment can optimize your PCB production line. Dive in to discover practical, actionable tips to control your PCB costs while maintaining quality and speed.
Panelization is a technique in PCB manufacturing where multiple boards are combined into a single panel. This method improves production throughput, reduces handling costs, and protects small boards during processing. By combining boards, manufacturers can optimize the use of PCB material and increase efficiency.
Panelization offers several benefits for assembly. It allows faster SMT placement by processing multiple boards in one run. Reduced handling and efficient depanelization save time and reduce costs. Additionally, better material utilization lowers the per-unit cost, making it cost-effective for both small and large production runs.
Panelization methods include V-Scoring, Tab Routing, and Solid Tab Panelization. Each method has its pros and cons:
V-Scoring: Cuts V-shaped grooves along the edges, making separation easy. Suitable for boards that can withstand some stress.
Tab Routing: Uses small tabs to hold boards together, allowing clean separation. Best for sensitive boards.
Solid Tab Panelization: Stronger tabs provide extra support, ideal for larger boards. Requires more effort to separate.

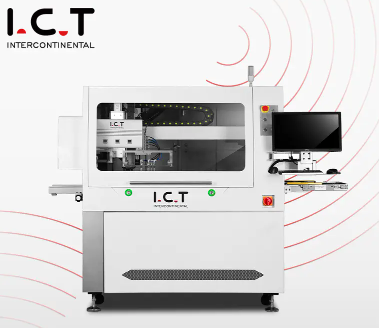

Depanelization is the process of separating individual boards from the panel. Options include manual and machine depaneling. Managing stress on boards during separation is crucial to avoid damage. Balancing cost and yield protection ensures efficient and reliable production.
| Method | Pros | Cons |
|---|---|---|
| V-Scoring | Easy separation, suitable for robust boards | Can cause stress, not ideal for sensitive boards |
| Tab Routing | Clean separation, suitable for sensitive boards | More complex setup, higher initial cost |
| Solid Tab Panelization | Strong support, ideal for larger boards | Requires more effort to separate, higher labor cost |
By understanding panelization, manufacturers can optimize their processes for cost and efficiency.
Higher volumes lower per-unit costs using economies of scale. Fabricators spread setup costs across more boards, reducing individual pricing. Assembly houses save on feeder setup, machine programming, and operator calibration time.
Large orders improve panelization efficiency, letting fabricators nest boards to minimize scrap. You gain better material yield per panel, cutting FR-4 waste.
For example, panelizing 10 small boards in a 250mm x 250mm panel may leave unused areas. Scaling to 50 boards lets engineers optimize layouts, using nearly all substrate space. Reduced waste in volume builds also lowers disposal and storage costs, keeping the workshop organized while cutting hidden expenses.
High-volume orders risk extending lead times if production isn’t scheduled properly. Machines need longer continuous runs, and PCB fabricators prioritize large jobs. To balance delivery, segment orders into planned batches and use staggered scheduling. Partial shipments help avoid line starvation for critical builds while leveraging volume pricing.
Flexible lead time strategies align your supply chain and reduce production bottlenecks in high-mix environments.
Low-mix, high-volume builds simplify programming and feeder setup, reducing changeover waste. Machines stay productive without frequent downtime. High-mix, low-volume orders increase changeover frequency, raising idle time as feeders, programs, and stencils switch. It affects efficiency if not planned.
| Aspect | High-Mix, Low-Volume | Low-Mix, High-Volume |
|---|---|---|
| Changeover Frequency | High | Low |
| Machine Downtime | Higher | Lower |
| Per-Unit Assembly Cost | Higher | Lower |
Understanding these trade-offs helps teams choose the best strategy to control PCB assembly costs while meeting project demands.
Effective panel layout significantly reduces material waste. By nesting odd-shaped PCBs together, manufacturers can maximize material utilization. For example, a well-designed panel can reduce material costs by up to 15%. This is especially important for high-volume production runs, where even small savings per unit can add up to substantial cost reductions.
Panelization reduces the number of manual touches per board, leading to significant labor savings. Fewer manual interactions mean less labor time and reduced risk of human error. Additionally, loading and unloading times during SMT are minimized. This can cut labor costs by 20% in high-volume production, making the process more efficient and cost-effective.
Panelized boards streamline testing processes, making Automated Optical Inspection (AOI), In-Circuit Testing (ICT), and functional testing more efficient. By testing multiple boards simultaneously, manufacturers can reduce the time and cost associated with individual board testing. This can lower inspection costs by up to 30% in volume production, ensuring high-quality output while minimizing expenses.
Depanelization methods significantly impact costs and risks. V-scoring is a cheaper method but can cause stress on the boards, potentially leading to damage. Tab routing is more expensive but gentler on the boards, reducing the risk of damage during separation. Improper depanelization can increase scrap rates, negating some of the cost savings achieved through panelization. Balancing cost and risk is crucial for maximizing overall savings.
| Aspect | Cost Impact | Example |
|---|---|---|
| Material Savings | Effective layout reduces waste, lowering material costs. | A well-designed panel can reduce material costs by up to 15%. |
| Labor Savings | Fewer manual touches and quicker loading/unloading reduce labor costs. | Labor costs can be reduced by 20% in high-volume production. |
| Testing Efficiency | Streamlined testing processes lower inspection costs per unit. | Testing costs can drop by 30% in volume production. |
| Depanelization Costs | V-scoring is cheaper but riskier; tab routing is costlier but safer. | Choosing the right method can prevent scrap and ensure cost savings. |
By understanding these factors, manufacturers can calculate the cost savings of panelization and make informed decisions to optimize their production processes. Each aspect offers specific opportunities for reducing costs while maintaining high-quality output.
Panel designs must align with the capabilities of your assembly equipment. Ensure that your panel layouts match the dimensions and requirements of conveyors and fixtures. Designing breakaway tabs for efficient depaneling can significantly reduce manual labor and potential damage during separation. For example, using V-shaped breakaway tabs can make the depaneling process smoother and more reliable.
Panel size is a critical factor in optimizing costs. Consider the size restrictions of your pick-and-place, reflow, and AOI machines. Oversized panels may require manual intervention, increasing labor costs and reducing efficiency. By keeping panels within the optimal size range for your equipment, you can maintain smooth automation and reduce the need for manual handling. For example, a panel size that fits well within the machine’s capabilities can improve throughput by up to 25%.
The choice of panelization method should be based on your production volume. For small prototypes, V-scoring is often sufficient and cost-effective. However, for high-volume runs, tab routing is generally preferred as it provides a gentler separation process, reducing the risk of board damage. Understanding when to use V-score vs. tab routing can significantly impact both cost and quality. For example, tab routing can reduce scrap rates by up to 10% in high-volume production runs.
| Aspect | Consideration | Example |
|---|---|---|
| Aligning Panel Design | Match designs with conveyor and fixture capabilities. | Using V-shaped breakaway tabs for easy depaneling. |
| Balancing Panel Size | Ensure panels fit machine capabilities to avoid manual intervention. | Keeping panels within machine size limits to maintain automation efficiency. |
| Choosing Panelization Method | Choose V-score for small runs, tab routing for high volume. | V-score for prototypes, tab routing for production runs to reduce scrap. |
By carefully considering these design factors, manufacturers can optimize panelization for both cost and efficiency. Each choice impacts production flow and final costs, making informed decisions crucial for maximizing savings and maintaining high-quality output.
Panelization reduces assembly costs by improving material utilization and reducing handling. Combining multiple boards into one panel maximizes material use, reducing waste. Fewer manual touches per board lower labor costs. Efficient depanelization methods also save time and reduce errors.
Yes, panelization can be beneficial for small volume orders. It streamlines the assembly process, making it more efficient. Even with fewer boards, panelization reduces setup times and improves material use. This can lead to cost savings, especially when using automated equipment.
The best panelization method depends on your design and production needs. V-scoring is suitable for small, robust boards and prototypes. Tab routing is better for larger, more sensitive boards. Solid tab panelization provides extra support for large boards but requires more effort to separate.
Increasing order volume can lead to significant cost savings. Higher volumes reduce per-unit costs through economies of scale. Setup costs are spread over more units, lowering individual costs. Material utilization also improves, reducing waste. For example, a large order might reduce per-unit costs by 20% compared to a small one.
Skipping proper panel design can lead to increased costs and production delays. Poorly designed panels can cause material waste, higher labor costs, and increased scrap rates. Improper depanelization can damage boards, leading to rework or scrap. Proper panel design ensures efficient production and cost savings.
Understanding how PCB panelization and volume impact assembly costs is crucial for optimizing your production. From material savings and labor efficiency to choosing the right panelization method, each factor plays a role in reducing costs and improving speed. If you’re looking to enhance your PCB production, consider partnering with experts like Dongguan ICT Technology Co., Ltd.They specialize in advanced PCB solutions and can help you maximize efficiency and cost savings.
