YSM20WR | Yamaha Smt Pick And Place Machine

Share to:

YSM20WR | Yamaha Smt Pick And Place Machine

Name: YSM20WR | Yamaha Smt Pick And Place Machine
Brand: Yamaha
Rating: 5.0 (52 reviews)

Yamaha YSM20WR Smt Pick And Place Machine.
All-purpose surface mounter with the highest speed in its class brings 1head solution evolution to a whole new level!
World’s fastest mounting speed in its class; 5% faster than the YSM20.
Featuring a new wide-scan camera with improved component adaptability.
Optional features improving line operating rate without stopping the machine

Model:
YSM20WR
Brand:
Yamaha

Availability:

Quantity:



Inquire Add to Basket

Yamaha YSM20WR Smt Pick And Place Machine

Introduction

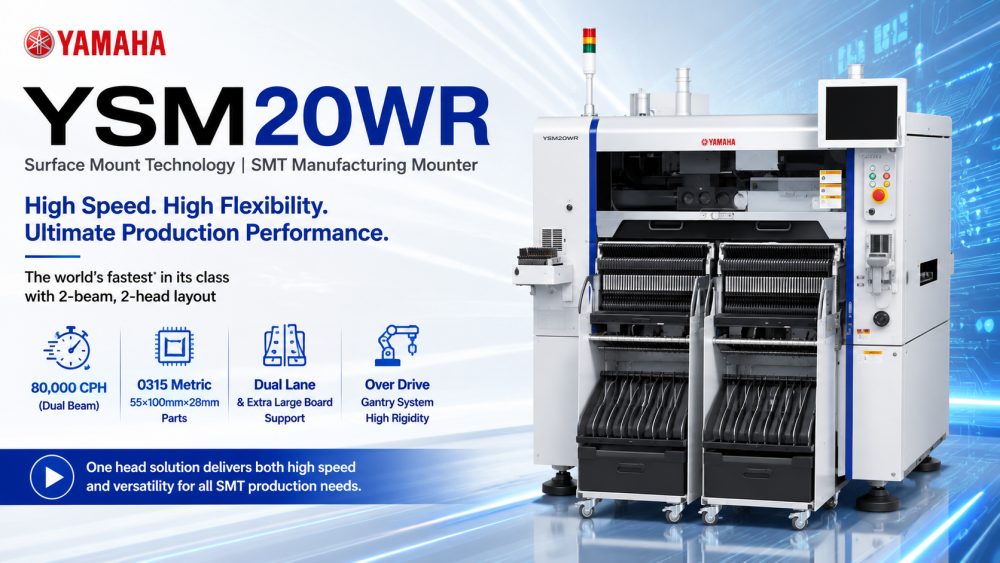

YAMAHA-YSM20WR-Modular-Placement

Yamaha SMT Pick and Place Machine

All-purpose surface mounter with the highest speed in its class brings 1head solution evolution to a whole new level!

World’s fastest mounting speed in its class; 5% faster than the YSM20.

Featuring a new wide-scan camera with improved component adaptability.

Optional features improving line operating rate without stopping the machine

Yamaha SMT Pick and Place Machine

Advance chip mounter

Fast & flexible pick and place machine

Multi-functional SMT placement

Fast flexible pick & place machine

Model	YSM20R TypePV	YSM20R TypeSV	YSM20WR
Applicable PCB	Single lane L810 x W490 to L50 x W50 Dual stage Note: For X-axis 2-beam option only 1PCB conveyance: L810 x W490 to L50 x W50 2PCB conveyance: L380 x W490 to L50 x W50		Dual lane Note 1 Same type PCBs: L810 x W356 to L50 x W50 Different type PCBs: up to L810 x W662 Note 2 Same type PCB: L810 x W280 to L50 x W500 Different type PCBs: up to L810 x W510
Head / Applicable components	High-Speed Multi (HM) Head Note 3: 0201 to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015 to W55 x L100mm, Height 28mm or less	High-Speed Multi (HM) Head: 03015 to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015 to W55 x L100mm, Height 28mm or less	High-Speed Multi (HM) Head Note 3: 0201 to W55 x L100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015 to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor)	X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH	X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 90,000CPH	X axis 2-beam Note 1: High-speed multi-purpose (HM: High-speed Multi) head x 2
Mounting accuracy	±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types	Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry state
External dimension (excluding projections)	L 1,374 x W 1,857 x H1,445mm (Main unit only)		L 1,374 x W 2,110 x H1,445mm (Main unit only)
Weight	Approx. 2,050kg (Main unit only)		Approx. 2,500kg (Main unit only)
