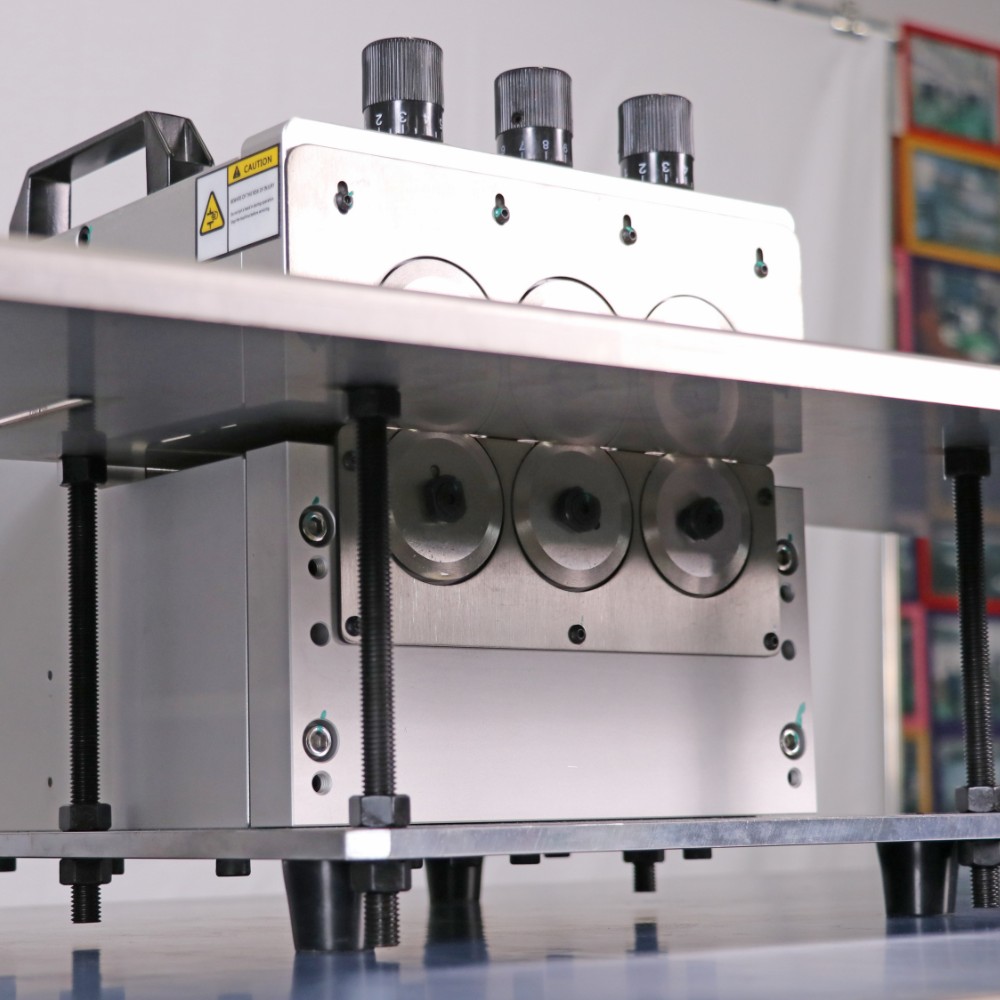

I.C.T-MLS1200 | Multi Blades LED Separator

Share to:

I.C.T-MLS1200 | Multi Blades LED Separator

Name: I.C.T-MLS1200 | Multi Blades LED Separator
Brand: I.C.T
Rating: 5.0 (35 reviews)

Multi Blades LED Separator
Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry.
Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.

Model:
I.C.T-MLS1200
Brand:
I.C.T

Availability:

Quantity:



Inquire Add to Basket

I.C.T-MLS1200 | Multi Blades LED Separator

Overview

High quality PCB V-cut machine, PCB separator, PCB depaneling, for PCBA cutting.

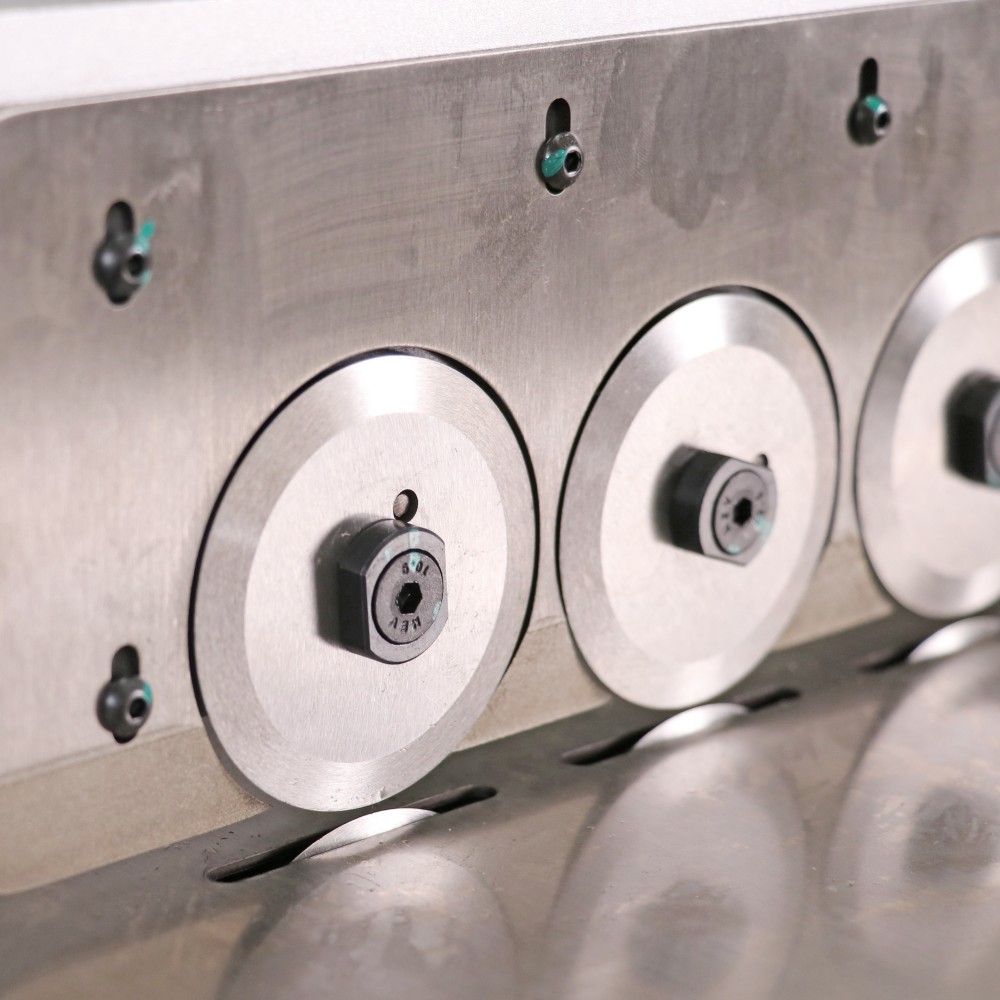

1. Unique way to separate PCB, totally six pieces of circular blades to work on it,two blades(up and down) each group,work as a Unit.

2. The whole process divides into three phases: A,B and C.Firstly Group-A separate 40%,Group-B follows to separate next 40% along the same V-slot of Group-A,Balance 20% finishes.by Group-C. Since each separation is short,internal strength decreased 80% compared with old way of separation,in this way,the Board won`t get deformed,especially the Board of Aluminum.

4.Multi times of separation, the whole process is really stable,bad situation is avoided.

5. Blades made by Taiwan,life would be over one year.

Automatic PCBA Placement Machine

1. Automatic feeding: auto feed the products to be placed in the plate after receiving the signal from the front machine.
2. Automatic code scanning: CCD detects the product size and has the code scanning function at the same time.
3. Automatic pan: CCD guides the suction nozzle to automatically suck OK products to pan.
4. Automatically distinguish NG code: NG products are automatically put into the NG plate, and the NG code and fork plate are put into the defective box.
5. Automatic stacking tray: automatically supply empty trays and stacking OK finished trays full trays.

6. AGV automatically feeds in empty trays and takes away full trays.

Process:

Specification:

Model	I.C.T-MLS380	I.C.T-MLS1200	I.C.T-MLS2400
Dimension	Host 325330334mm Small Platform(Self-equipped)	Host 325330334mm Platform 1200360190mm	Host 325330334mm Platform 2400360190mm
Blade Customization	3 Group(Top 1pcs,Bottom 1pcs)
Power	1 PH AC 220V 50/60Hz (Option:110V to 230V)
Weights	35KG	35KG+6KG	35KG+9KG
