Automated PCB Inline 3D-CT Automated X-ray Inspection System

The I.C.T-9200 is designed to provide high-resolution X-ray imaging for the electronics industry. This versatile system is effective for many applications in the PCB manufacturing process. This includes semiconductors such as BGA, CSP, LGA, POP, SIP, QFN, flip chips, COB, and LED.

  • I.C.T-9200

  • I.C.T

  • X-RAY machine

Availability:
Quantity:
Inquire Add to Basket

Automated PCB Inline 3D-CT Automated X-ray Inspection System

Overview


Online 3D X-Ray I.C.T-9200-1


X-Ray I.C.T-9200 Introduction:


The I.C.T-9200 is designed to provide high-resolution X-ray imaging for the electronics industry. This versatile system is effective for many applications in the PCB manufacturing process. This includes semiconductors such as BGA, CSP, LGA, POP, SIP, QFN, flip chips, COB, and LED. The I.C.T-9200 is a powerful support tool for process development, process monitoring, and refinement of rework operations.

Features：

1. 130KV closed X-ray tube;

2. High-speed million high-resolution FPD detector, 6-axis motion system, to meet various high-demand detection needs;

3. Windows navigation, convenient target tracking;

4. BGA void area automatic measurement and report generation;



BGA void rate calculation

BGA void rate calculation

Safely Electromagnetic Interloc&khardware protection

Safely Electromagnetic Interloc & khardware protection

Large Size Inspection Table

Large Size Inspection Table

Real-time Monitoring of Radiation

Real-time Monitoring of Radiation


Application:

SMT, BGA, CSP, Flip Chip, LED Detection,Semiconductor, Packaging components, Battery Industry,Electronic components, Automotive parts, Photo-voltaic,Aluminium Die-casting, Moulding Plastic.Ceramics, other special industries.

BGA 3D CT Detection

BGA 3D CT Detection

IC 3D CT Detection

IC 3D CT Detection

Lithium battery Detection

Lithium battery Detection

Die-Casting-Detection

Die Casting Detection



Specification:

Item Model I.C.T-9200
X-Ray Tube Max. Voltages, Type 130kV/1000μA, Closed Micro Focus X-ray Tube
Detector Type FPD
Detector Resolution 1 μm
Pixel 1536x1536
Detector Angle Full 360° viewing angle, 2*70° tilt
Operating System Industrial PC, Win10 64-bit, i7 Processor
System Computer Monitor 24” LCD
User Interface I.C.T Multi-function DXI image processing system
Working Platform Max. Inspection Area 510mm*670mm
Max. Loading Weight 5kg[M size]; 30kg[L size]
Movement Control Joysticks, Mouse and Keypads
Motion range (Up and Down) 250mm
PCBA thickness 0.5-5mm
PCBA craft side 5mm
PCBA warpage compensation ±2mm
Clearance Top&Bottom 70mm&40mm
Navigation Camera HD Camera, Laser point
Axis Manipulator 6-axis with Cam X / Y / T , Platform X / Y / Z
Axis Control X, Y
Equipment Features Power Supply AC 110~220V (±10%) 50Hz, 3kW
Outline Dimensions 1700(W)*1660(D)*1900(H) mm
System Weight

3330 kg
UPS 1000VA, 800W




I.C.T - Our Company

I.C.T - Our Company AOI Optical Inspection Machine About I.C.T: I.C.T is a leading provider of factory planning solution. We have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of eletronic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customersv to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are trustworthy. AOI Optical Inspection Machine Exhibition AOI Optical Inspection Machine


About I.C.T:

I.C.T is a leading provider of factory planning solution. We have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of eletronic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customersv to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are trustworthy.

I.C.T - Our Company AOI Optical Inspection Machine About I.C.T: I.C.T is a leading provider of factory planning solution. We have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of eletronic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customersv to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are trustworthy. AOI Optical Inspection Machine Exhibition AOI Optical Inspection Machine


Exhibition

I.C.T - Our Company AOI Optical Inspection Machine About I.C.T: I.C.T is a leading provider of factory planning solution. We have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of eletronic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customersv to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are trustworthy. AOI Optical Inspection Machine Exhibition AOI Optical Inspection Machine

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT


I.C.T - Our Company AOI Optical Inspection Machine About I.C.T: I.C.T is a leading provider of factory planning solution. We have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of eletronic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customersv to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are trustworthy. AOI Optical Inspection Machine Exhibition AOI Optical Inspection Machine


I.C.T - Our Company AOI Optical Inspection Machine About I.C.T: I.C.T is a leading provider of factory planning solution. We have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of eletronic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customersv to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are trustworthy. AOI Optical Inspection Machine Exhibition AOI Optical Inspection Machine

Previous:
Next:
3D X-ray inspection PCB x ray machine price Automated SMT X-Ray Inspection Equipment Inline 3D-CT Automated X-ray Inspection System smt x ray machine SMT X-Ray Inspection System for PCB Assembly Advanced 3D X-Ray Inspection System PCB X-ray inspection PCB X-Ray Machines 3D X-ray inspection Fast and Economical

Related Products

High-speed X-ray Machine Electronic SMT Inspection Equipment
High-speed X-ray Machine Electronic SMT Inspection Equipment
Automatic PCB Testing Offline X Ray Inspection Machine For SMT
Automatic PCB Testing Offline X Ray Inspection Machine For SMT
I.C.T-9500 | Offline System SMT PCB X Ray Inspection Equipment
I.C.T-9500 | Offline System SMT PCB X Ray Inspection Equipment

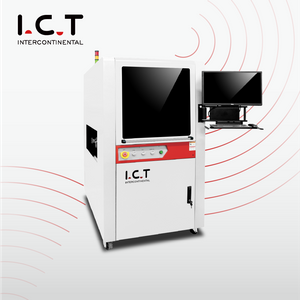

I.C.T-T650丨SMT PCB Selective Conformal Coating Machine
